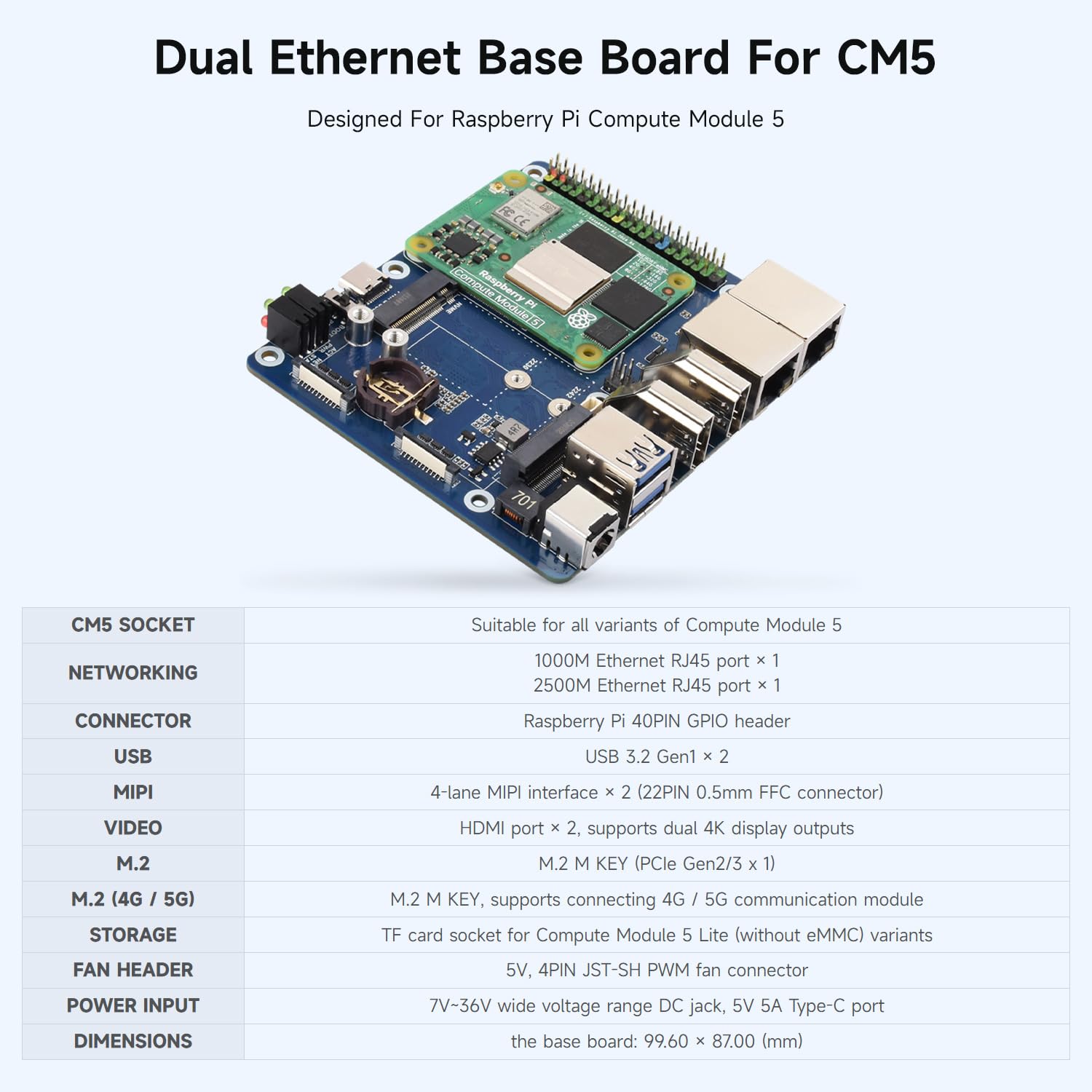

Waveshare Dual Ethernet Base Board with Metal Case For Raspberry Pi CM5, Supports 4G/5G Module, Dual 4K Display Outputs & 2 MIPI, Onboard 40PIN GPIO Header & 2 USB 3.2 Gen1 Ports, PoE Module Support

Marka: Waveshare
Nazwa modelu: Waveshare Dual Ethernet Base Board
Technologia łączności: Ethernet
Dołączone komponenty: CM5-DUAL-ETH-4G/5G-BOX-A (US)
System operacyjny: Linux
Producent procesora: Broadcom
Zgodne urządzenia: Urządzenia kompatybilne z Raspberry Pi
Technologia pamięci RAM: LPDDR4
Liczba produktów: 1

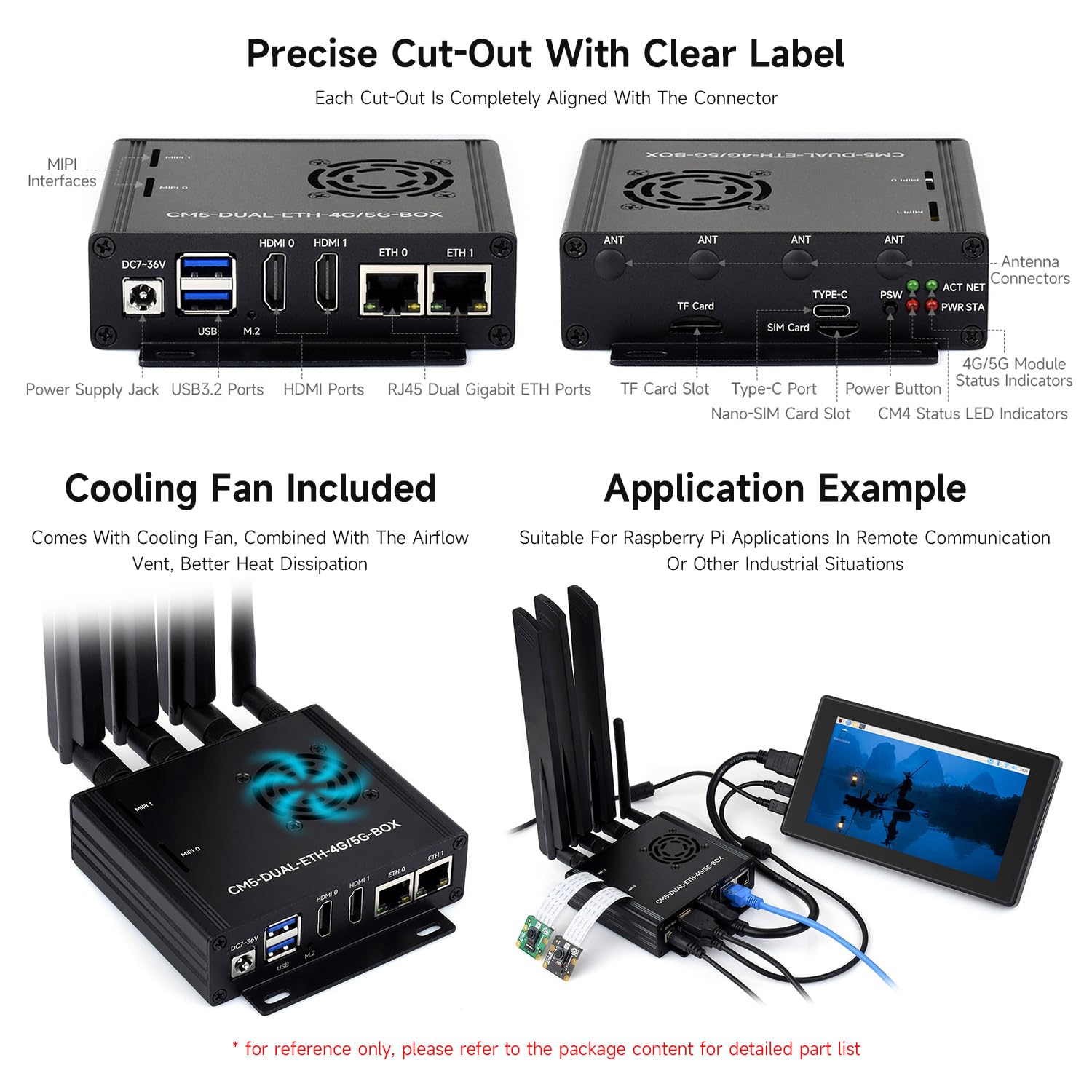

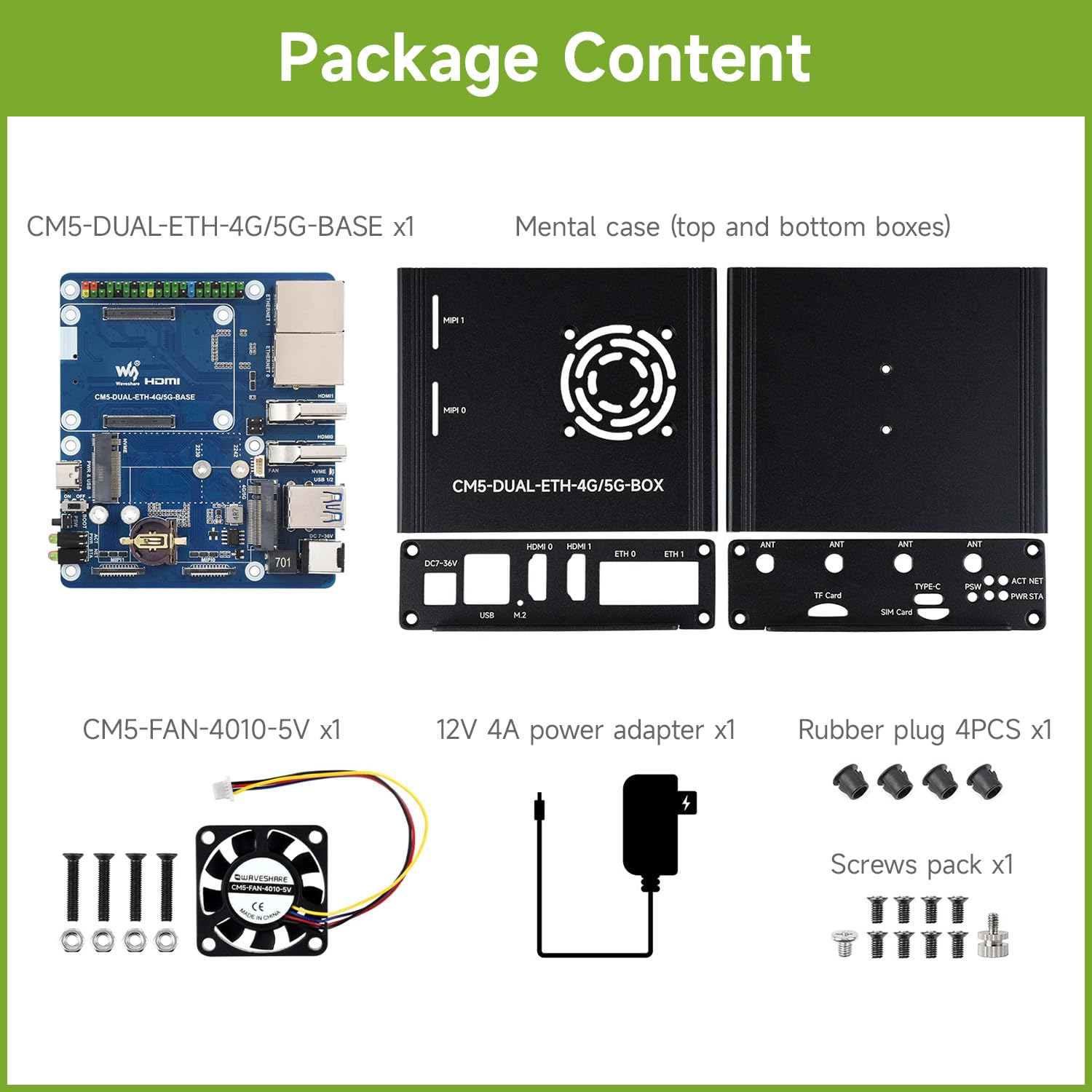

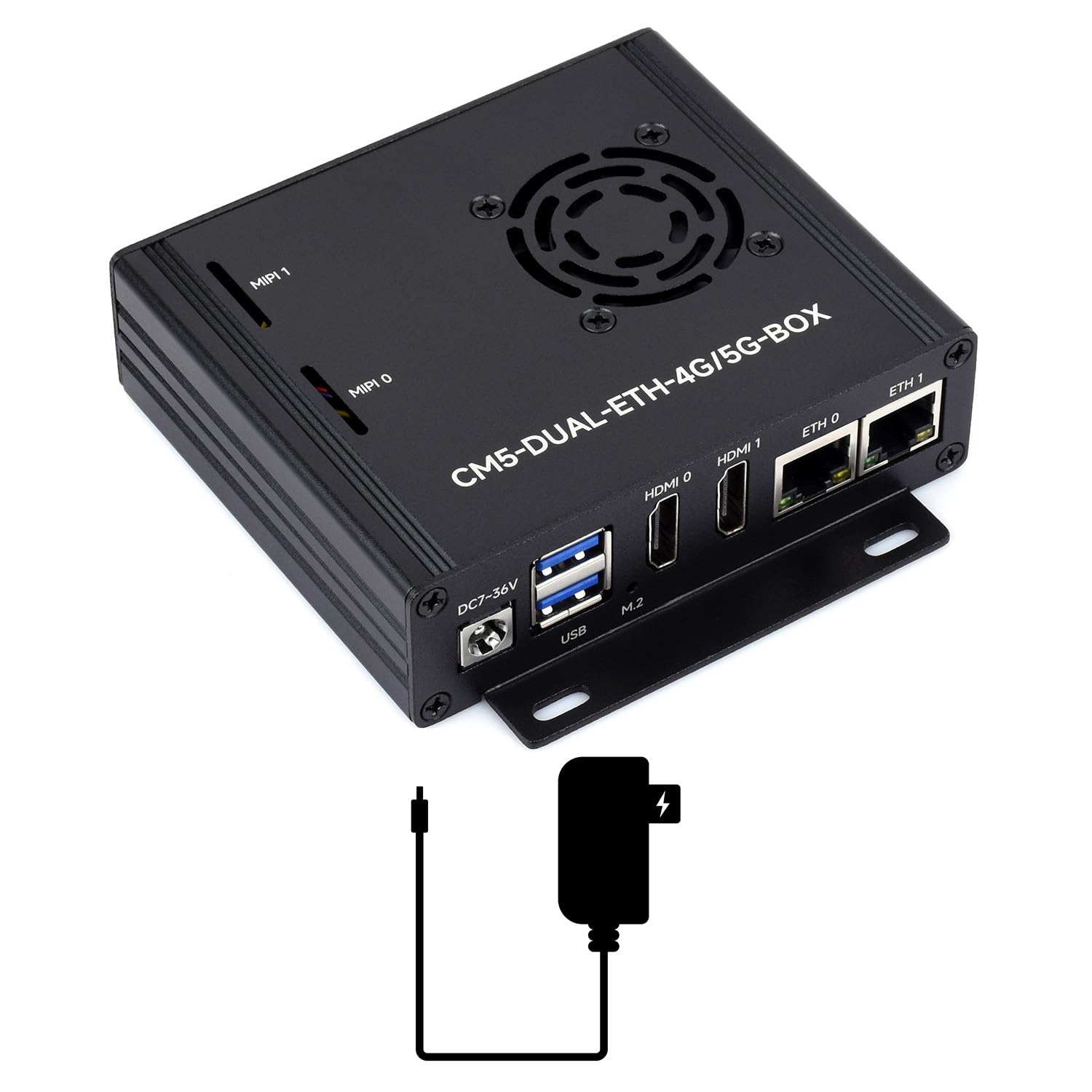

- CM5-DUAL-ETH-4G/5G-BOX-A, including the base board, metal case, cooling fan, etc. Type-C can be used as a USB SLAVE interface to flash images or power the device. Onboard 2 USB 3.2 Gen1 ports. The USB3.0 port has a maximum current output of 2A
- Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to be connected, the screen will display in split-screen mode (related to the system version)

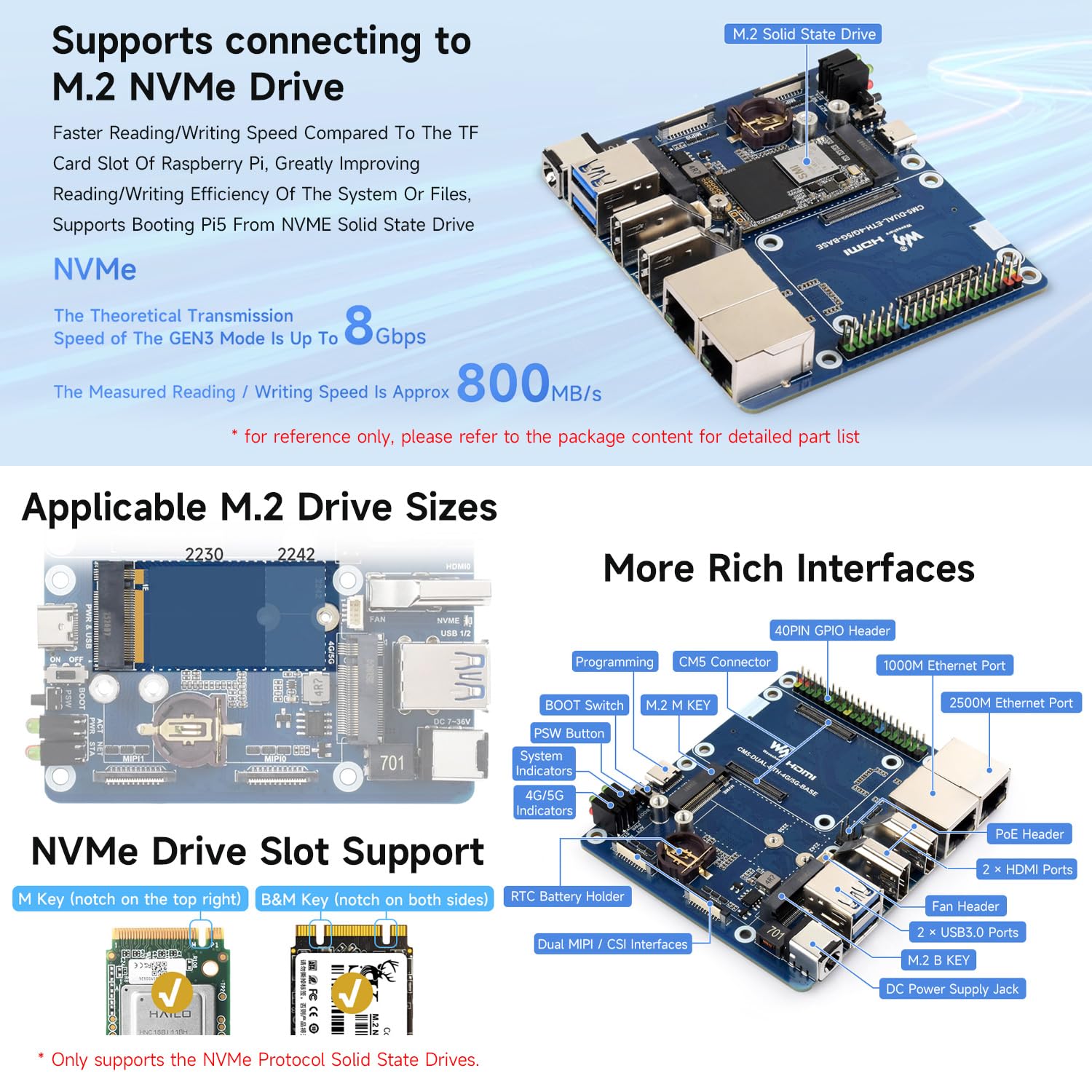

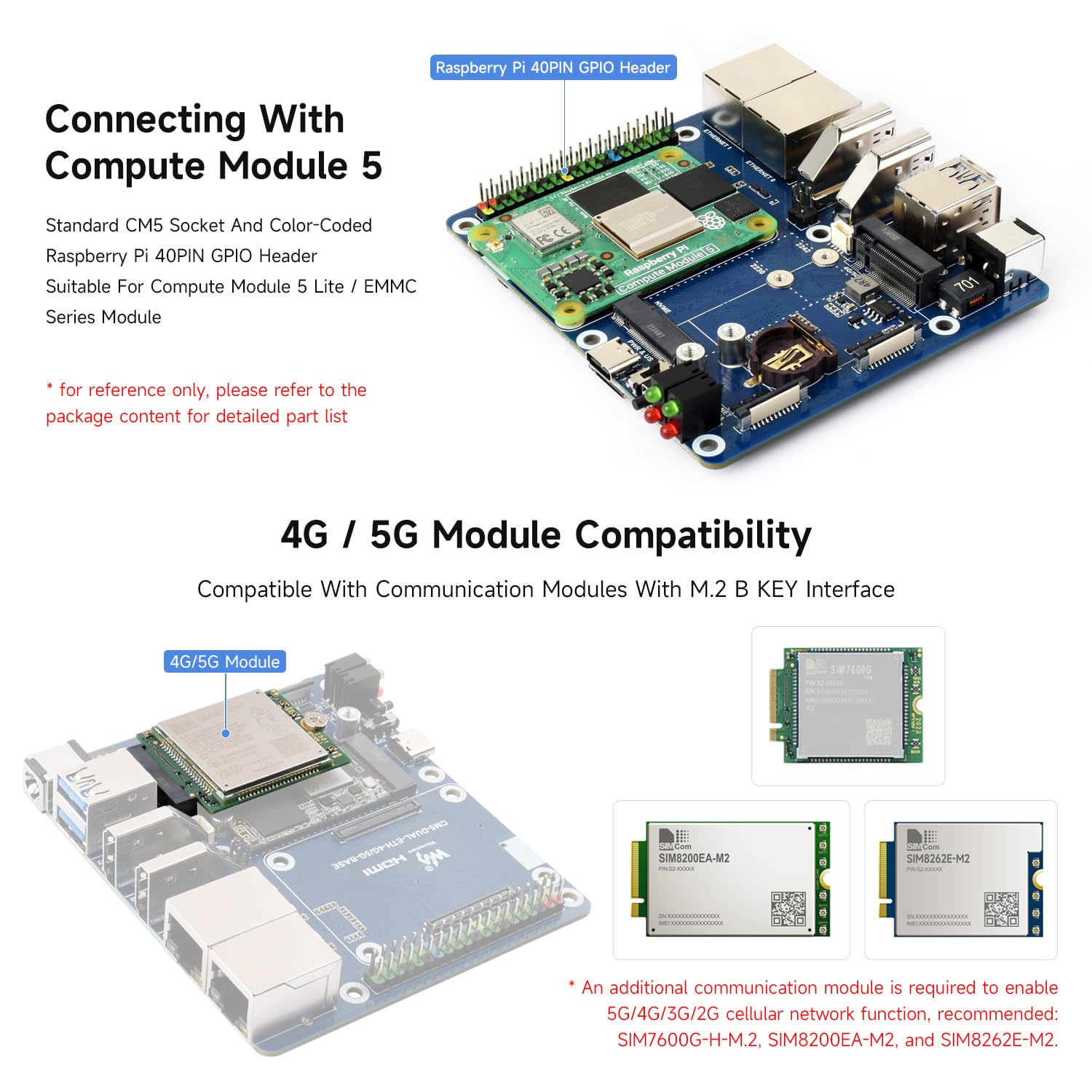

- Onboard M.2 M KEY interface, supports NVMe hard drive protocol (or AI modules of the PCIe protocol). Onboard M.2 B KEY interface, supports connecting 4G/5G communication modules
- Onboard BOOT switch, you can turn the BOOT switch to ON before powering on, connect the device to a computer via Type-C to allow the device into flashing mode
- Do not connect other devices when using Type-C for flashing, otherwise insufficient power supply will cause the device to be unrecognized
